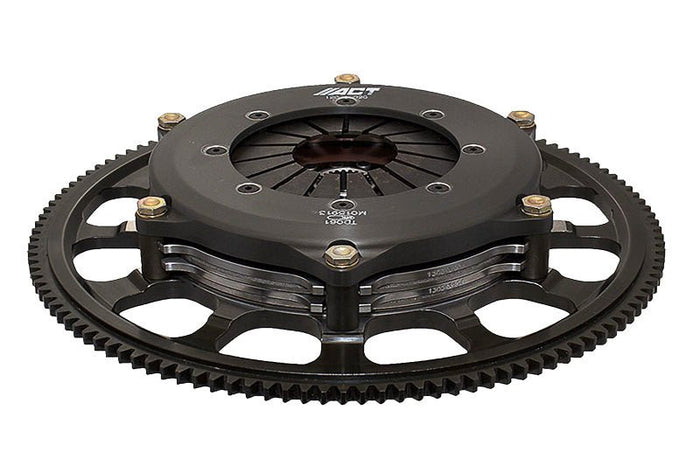

ACT Twin Disc Sintered Iron Race Kit (89-98 Nissan 240SX)

T1RR-N01 race, twin disc kits are race-ready for the serious enthusiast who needs a direct bolt-in kit, requiring no additional modifications. ACT's sintered iron race discs offer the highest torque capacity of all ACT race discs and have ultra-high heat capacity. Most kits offer pedal loads 10-20% higher than stock, yet increasing the clamp load by 80-90%. All ACT twin disc kits include a CNC-machined and dynamically balanced flywheel for trouble free use. All kits undergo an exclusive four-stage, heat-treating process on all diaphragms. ACT twin disc kits include a pressure plate, two discs, floater, flywheel and alignment tool. Some kits may include a pilot bearing and release bearing. ACT Twin disc kits meet SFI Specification 1.2.

Features

• Product Weight (lbs.) - 14.0
• Torque Capacity (ft/lbs.) - 1091
• Torque Capacity Over OE - 513%
• Disc Material - Sintered Iron
• Clutch Disc Diameter (Inches) - 7.25
• Clutch Disc Diameter (Millimeters) - 184
• Input Shaft Diameter (inches) - 1

Benefits

• Feel - Light to moderate pedal effort, predictable, quick engagement, quick throttle response, increased gear rattle
• Life - ACT's exclusive diaphragm, hardened posts and high heat capacity for long life under severe abuse, rigid design may increase spline wear
• Quality - Carefully engineered, precisely assembled, accurately balanced, chromoly hub is heat-treated for strength and durability
• Recommended Use - Recommended for high horsepower race use only, not intended for street
• ACT Difference - 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

Applications

• 1989-1998 Nissan 240SX

What's In The Box?

• 1 - Twin Disc Sintered Iron Race Kit

Warranty

• ACT's Standard 1-Year Limited Warranty
